CHY254150 PULAITE New Vehicle-Mounted Lifting Lighting Equipment

Description:

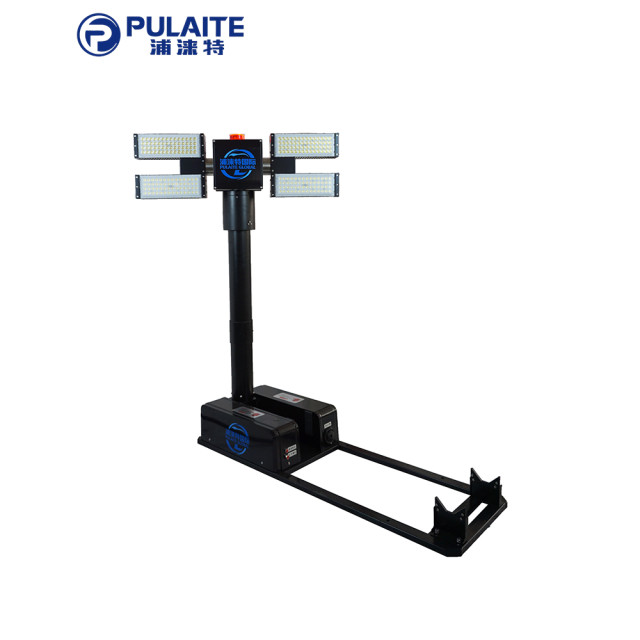

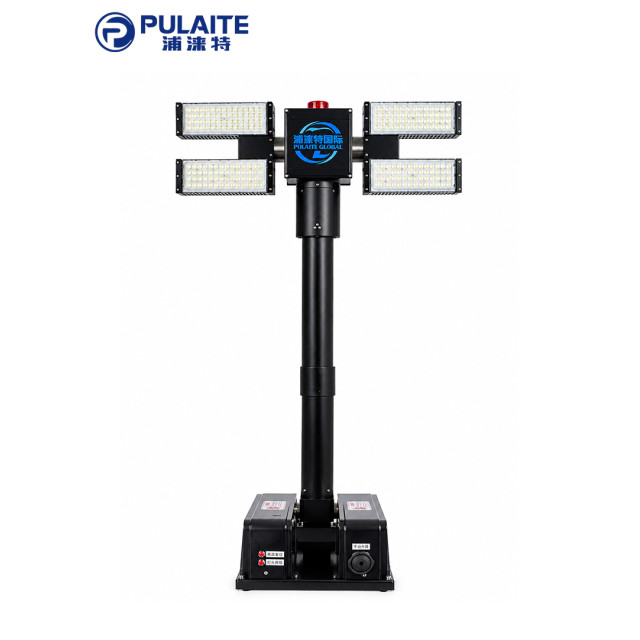

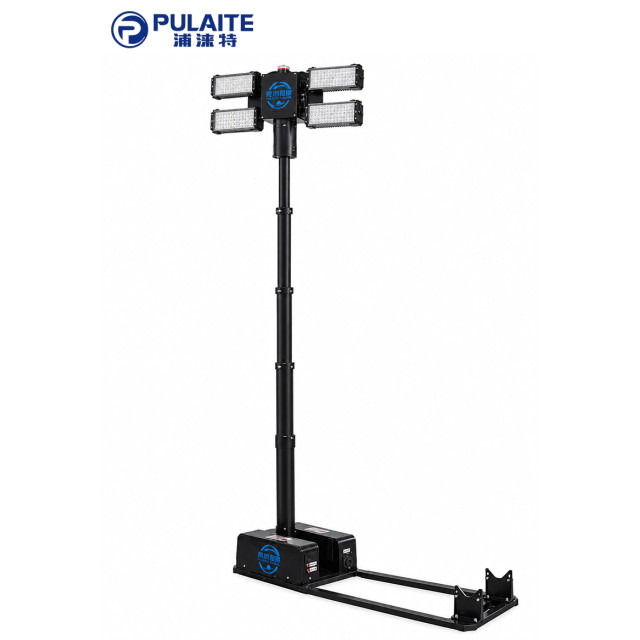

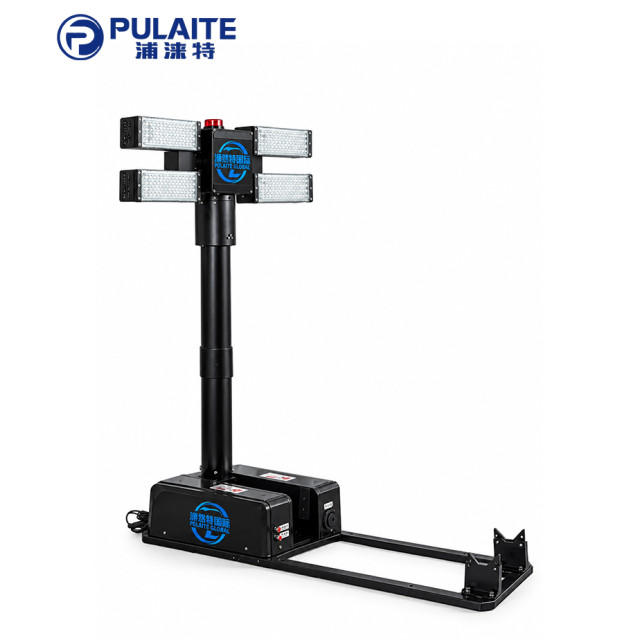

CHY254150 is a new vehicle-mounted lifting lighting equipment developed by Pulaite for large-area, high-brightness lighting at major construction projects, emergency repairs, disaster relief and rescue operations. The pneumatic lifting mast extends to a height of 2.7 m, and the four LED lamp heads (150W x 4) deliver a luminous efficacy of up to 160 lm/W with a total luminous flux of 96,000 lm. Starting from its initial horizontal position, the lighting assembly rises to a vertical angle of 90 degrees, with a closed height of less than 23 cm.

The system operates on DC 12V or DC 24V power and can also be customized for AC 220V operation. The lamp assembly rotates 360 degrees horizontally, while the left and right lamp heads rotate 330 degrees vertically, either synchronously or independently, at a rotation speed of 4 r/min. It is suitable for medium-sized special-purpose vehicles, such as communication command vehicles, patrol and rescue vehicles, and fire trucks.

Product selling points:

1. Large-area, high-brightness lighting: four high-efficiency LED lamp heads (150W x 4) deliver a total luminous flux of 96,000 lm at a luminous efficacy of up to 160 lm/W, meeting the lighting demand of construction sites, emergency repairs, disaster relief and rescue operations.

2. Pneumatic lifting mast: the mast extends to 2.7 m, and starting from its initial horizontal position the lighting assembly rises to a vertical angle of 90 degrees, with a closed height of less than 23 cm for medium-sized special-purpose vehicles.

3. Flexible rotation control: the lamp assembly rotates 360 degrees horizontally, and the left and right lamp heads rotate 330 degrees vertically with synchronous or asynchronous modes at a rotation speed of 4 r/min.

4. Product advantages:

● Lighting efficiency: high-efficiency LED chips, driver circuits and high-transmittance lenses achieve a luminous efficacy of up to 160 lm/W, with long service life, low power consumption and excellent vibration resistance.

● Rotation modes: full 360-degree horizontal rotation of the lamp assembly; the left and right lamp heads rotate simultaneously or independently in the vertical direction, with free switching between the two modes.

● Air hose routing: the air hose is routed internally and concealed inside the mast pole, preventing air leakage caused by hose bending or prolonged exposure to sunlight, and providing a cleaner and more aesthetic appearance.

● Emergency functions: during equipment retraction, the system automatically stops if an obstacle is detected beneath it; in the event of a power failure, the equipment can be manually retracted using the emergency manual reset function; anti-pinch protection is provided.

● Control and diagnosis: the controller is equipped with an LCD display showing the operating status, and the system features a self-diagnostic function that displays the corresponding fault location whenever a malfunction occurs; both wired (RS-485) and wireless remote control are supported.

Specifications:

The controller supports mast raising, lowering and stopping, horizontal and vertical rotation of the lamps, and lamp on/off switching. It works in both wired (RS-485, which also charges the controller) and wireless remote-control modes, and its integrated display provides real-time equipment status monitoring, operation prompts, fault diagnosis and fault location alerts.
