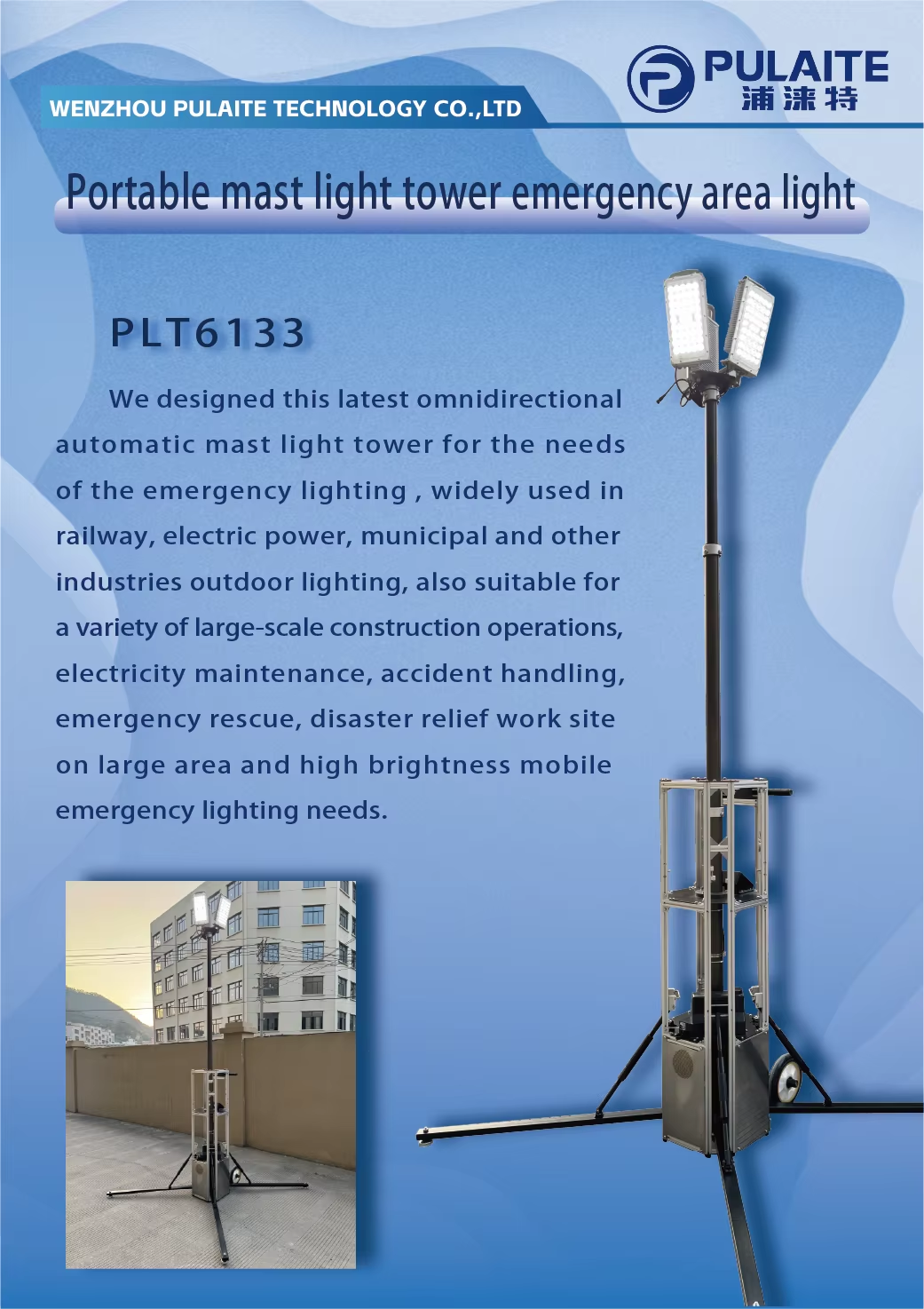

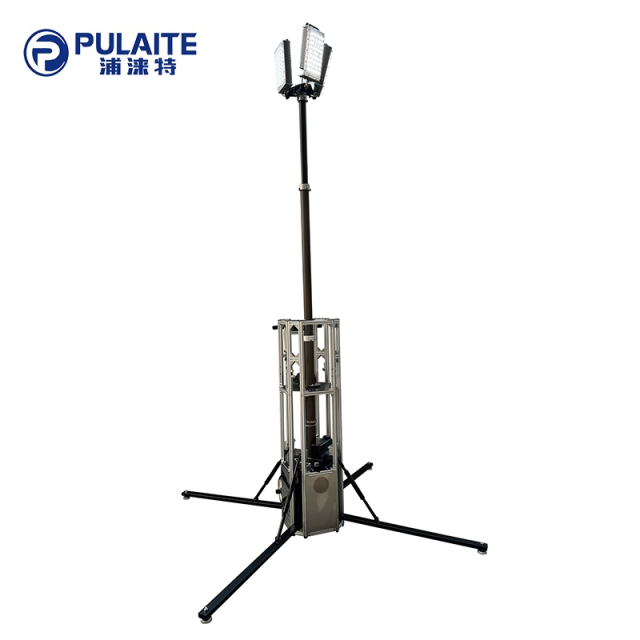

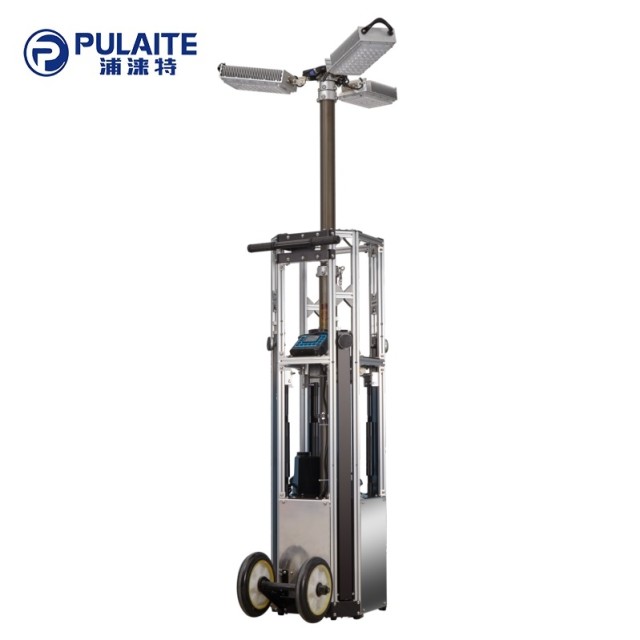

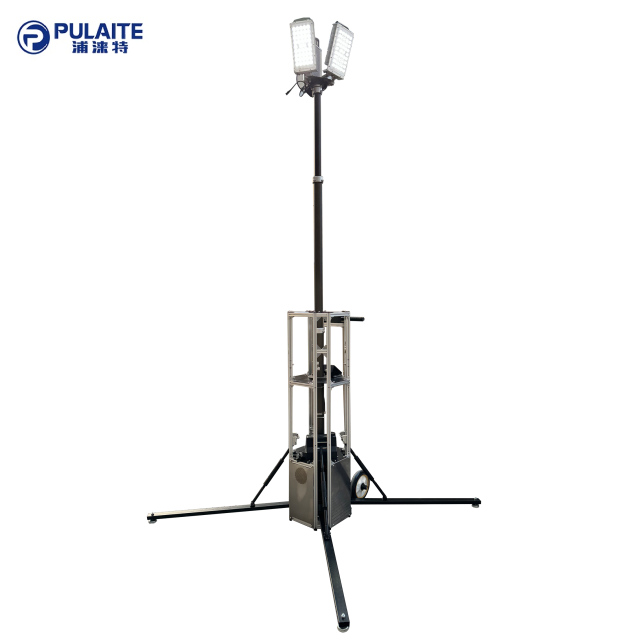

We designed this latest omnidirectional automatic mast light tower for the needs of the emergency lighting , widely used in railway, electric power, municipal and other industries outdoor lighting, also suitable for a variety of large-scale construction operations, electricity maintenance, accident handling, emergency rescue, disaster relief work site on large area and high brightness mobile emergency lighting needs.
Online Inquiry
|
Code |
Parameter name |
unit |
Value |
|
|
1 |
Equipment working voltage |
V |
AC220 |
|
|
|
Rated battery voltage |
V |
DC14.4 |
|
|
|
Battery charge voltage |
V |
AC220 |
|
|
2 |
Rated battery capacity |
Ah |
10 |
|
|
3 |
Maximum lighting power (spotlight + flood) |
W |
600 |
|
|
4 |
Maximum initial illumination at 10m |
1x |
≥1000 |
|
|
5 |
Lithium battery pack power supply time |
h |
≥1 |
|
|
6 |
Battery life |
h |
≥500 |
|
|
7 |
220V input charging time |
h |
< 5 |
|
|
8 |
Overall dimensions |
Shrunk state |
mm |
390x643x1450(±50) |
|
|
|
Raised state |
mm |
390x643x4800(±50) |
|
9 |
Weight |
Kg |
70±1 |
|
|
10 |
Operating environment |
℃ |
- 20 to 40 |
|
|
11 |
Audio format |
/ |
MP3 |
|
|
12 |
Speaker power |
W |
30 |
|
|
13 |
Protection class |
/ |
IP65 |
|
